XF Series IC Compact Pneumatic Forklift

5,000lbs lifting capacity

As a part of the XF series from Hangcha Group, the Compact Pneumatic Tire Forklift is designed to meet the needs of warehouses, distribution centers, and manufacturing facilities. Being pneumatic, this forklift offers the ability to operate both indoors and outdoors. The Compact Pneumatic forklift offers a 5,000lb lifting capacity. This forklift also benefits from the latest in efficiency, comfort, and safety technology to make it an extremely reliable forklift. This is the XF Series Compact Pneumatic Tire Forklift from Hangcha Group.

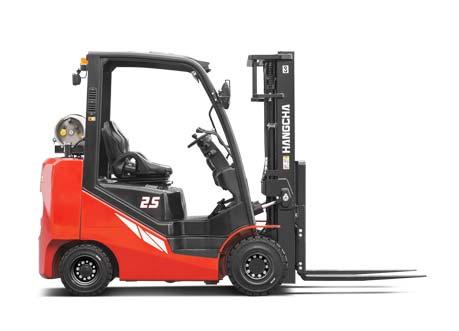

XF Series IC Compact Pneumatic Forklift


Ergonomic Design

The small diameter, adjustable steering wheel, electro-hydraulic steering, and the combination switch increase the ease of operation and operator comfort substantially.

Wide View Mast

The mast has been redesigned to include new types of steel channels and a new mast system. This was done to increase forward visibility for the operator.

Large LCD Instrument Panel

The instrument display is made up of a 4" color LCD screen with four interactive buttons and one CAN bus communication function. The communication protocol is compatible with CANopen and SAE J1939 standards.

Panoramic Rearview Mirror

The panoramic rearview mirror allows the operator to have wider rear visibility when operating the forklift.

Large Handgrip

The large handgrip on the overhead guard is designed to allow the operator to get in and out of the truck safer and easier.

High-Strength Overhead Guard

The overhead guard is fabricated with specially shaped steel tubes to increase its structural rigidity and strength. It is also designed to be easily disassembled and reassembled for repairs. The guard features a flexible connection between it and the chassis to decrease vibrations. All of these features are responsible for increased operator safety and comfort.

Maintenance Hatch with a Saftey Latch

The maintenance hatch opens wide enough to provide easy serviceability of key components. The safety latch prevents the hatch from compromising operator safety when using the truck.

New Integrated Fuse Box

The next generation of integrated fuse box has been added to the truck. It offers a better layout, ease of service and maintenance, and is waterproof.
The entire truck is equipped with waterproof connectors to increase the electronics' reliability.

Reliable Hydraulic System

The hydraulic system has a longer service life and an increase in efficiency thanks to the optimized hydraulic breather structure with a built-in return oil filter and the load-sensing hydraulic steering system.

Optimized Cooling System

The cooling system has been designed to maximize cooling and increase the reliability of the engine when working under heavy loads. This system uses an aluminum radiator, an independent oil cooler, an optimized heat transfer channel, and a dual-hole counterweight to increase cooling efficiency.

Steering Axle

The steering axle uses large conical bearings on the master pin, buffer blocks, and a large-diameter steering cylinder to substantially increase the reliability and service life of the steering system.

Tilt-Back LP Bracket

The tilt-back cylinder holder makes replacing the LPG cylinder and opening the maintenance hatch for service easy.

North American EPA Certified Engines

The GCT GK25 engine is in compliance with the EPA/CARB Tier 2 emissions standards. Although it meets these standards, the engine still has the power and torque to get the job done. This engine is also electronically controlled to increase the fuel economy and the reliability of the trucks.

LED Light System

LED lights are used throughout the entire truck. The lights are energy-efficient, have a longer service life, and offer a significant increase in performance.

Environmentally Friendly Materials

Environmentally friendly materials are also used throughout the truck to minimize environmental damage and impact.

Large LCD Instrument Panel

Large Handgrip

EPA Compliant GCT GK25

Spacious Operator Compartment

Tilt-Back LP Bracket

Rear LED Lights


  • LED Rear Working Light
  • Auxiliary Hydraulic Valve Group
  • Rear Grip with Horn
  • Fire Extinguisher
  • High-Low Overhead Guard
  • Radiator Screen
  • Pre-Cleaner
  • Wider Carriage
  • Specialty Forks
  • Various Specialty Accessories

Product Demonstration

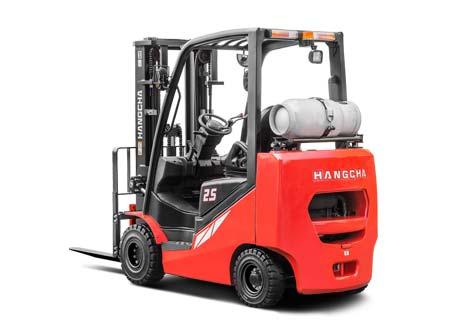

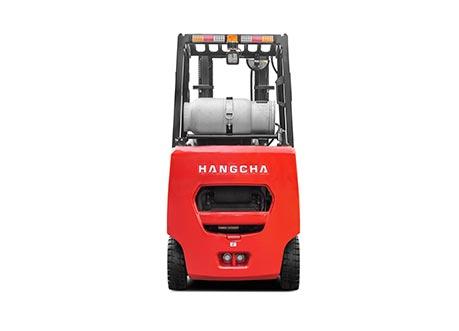

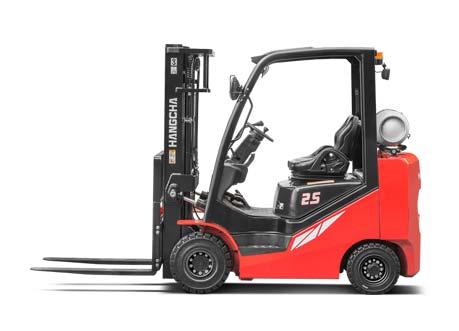

Other Images
