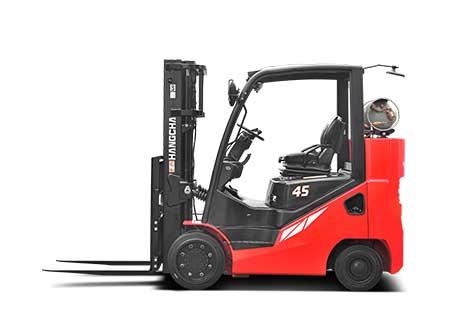

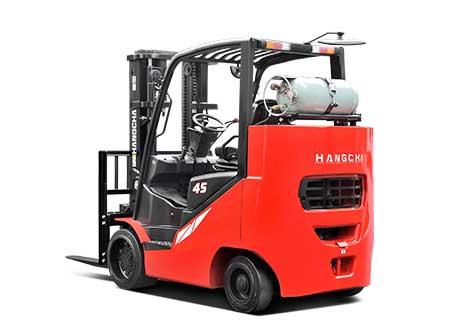

XF Series Box Car Special Forklift

8,000 - 12,000lbs lifting capacity

As a part of the XF series from Hangcha Group, the Box Car Special forklift adds a large capacity cushion tire truck to our full line of forklifts. This forklift was designed with a vertical counterweight to meet tight spaced, railroad car applications. The Box Car Special is also versatile enough to meet the demands of typical large capacity cushion forklifts or become a paper roll special by changing the mast to a paper roll clamp. This forklift also includes the latest advancements from Hangcha. These advancements include LED efficient lighting, a load-sensing hydraulic system, low-emission engine, noise/vibration control, and a new control system. This is the Box Car Special forklift from Hangcha Group.

XF Series Box Car Special Forklift

Features

Ergonomic Design

The small diameter, adjustable steering wheel, electro-hydraulic steering, and the combination switch increase the ease of operation and operator comfort substantially.

Wide View Mast

The mast has been redesigned to include new types of steel channels and a new mast system. This was done to increase forward visibility for the operator.

Large LCD Instrument Panel

The newly developed LCD instrument display has additional functions and offers more stable performance. Important information, including the running status of the entire truck and a check engine light, can be displayed. This allows the operator to easily understand the status of the truck for easy maintenance.

Panoramic Rearview Mirror

The panoramic rearview mirror allows the operator to have wider rear visibility when operating the forklift.

Large Handgrip

The large handgrip on the overhead guard is designed to allow the operator to get in and out of the truck safer and easier.

High-Strength Overhead Guard

The overhead guard is fabricated with specially shaped steel tubes to increase its structural rigidity and strength. It is also designed to be easily disassembled and reassembled for repairs. The guard features a flexible connection between it and the chassis to decrease vibrations. All of these features are responsible for increased operator safety and comfort.

Maintenance Hatch with a Saftey Latch

The maintenance hatch opens wide enough to provide easy serviceability of key components. The safety latch prevents the hatch from compromising operator safety when using the truck.

OKAMURA Transmission

The world-renowned OKAMURA transmission, with the Power Take-Off (PTO) feature, is used in our Box Car Special forklift. This transmission was chosen as apart of our forklift's design for its reliability. The gear pump is also extremely efficient.

New Integrated Fuse Box

The next generation of integrated fuse box has been added to the truck. It offers a better layout, ease of service and maintenance, and is waterproof.
The entire truck is equipped with waterproof connectors to increase the electronics' reliability.

Reliable Hydraulic System

The hydraulic system has a longer service life and an increase in efficiency thanks to the optimized hydraulic breather structure with a built-in return oil filter and the load-sensing hydraulic steering system.

Optimized Cooling System

The cooling system has been designed to maximize cooling and increase the reliability of the engine when working under heavy loads. This system uses an aluminum radiator, an independent oil cooler, an optimized heat transfer channel, and a dual-hole counterweight to increase cooling efficiency.

Steering Axle

The steering axle uses large conical bearings on the master pin, buffer blocks, and a large-diameter steering cylinder to substantially increase the reliability and service life of the steering system.

North American EPA Certified Engines

The PSI 4.3L LPG engine is in compliance with North American EPA Standards. Although it meets these standards, the engine still has the power and torque to get the job done. This engine is also electronically controlled to increase the fuel economy and the reliability of the trucks.

LED Light System

LED lights are used throughout the entire truck. The lights are energy-efficient, have a longer service life, and offer a significant increase in performance.

Environmentally Friendly Materials

Environmentally friendly materials are also used throughout the truck to minimize environmental damage and impact.

High Strength Overhead Guard

EPA Compliant PSI 4.3L LPG Engine

Rear LED Light System

Front LED Light System

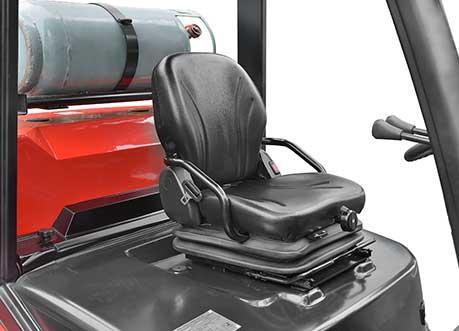

Spacious Operator Compartment

The OKAMURA Transmission

Options

  • Customizable Paint Colors
  • LED Rear Work Light
  • Auxiliary Hydraulic Valve Group
  • LED Rear Working Light
  • Fire Extinguisher
  • High-Low Overhead Guard
  • Radiator Screen
  • Pre-Cleaner
  • Blue Light
  • Counterweight Grill
  • Swing-Down LP Bracket
  • Traction Tires
  • Non-Marking Cushion Tires
  • Paper Roll Clamp
  • Sideshift & Fork Positioner
  • Wider Carriage
  • Various Specialty Attachments
  • Specialty Forks
  • Belly Pan
