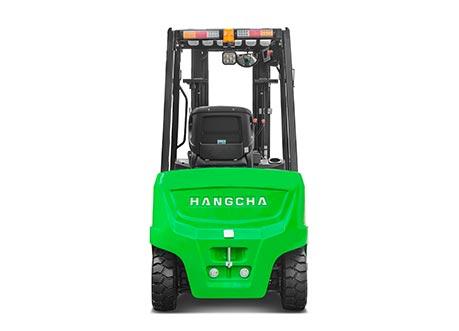

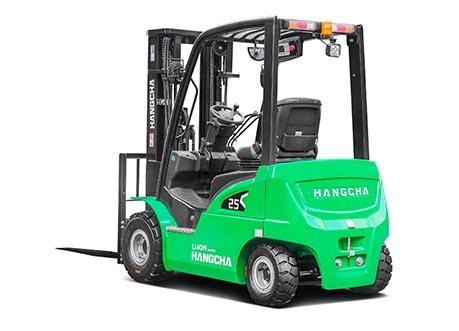

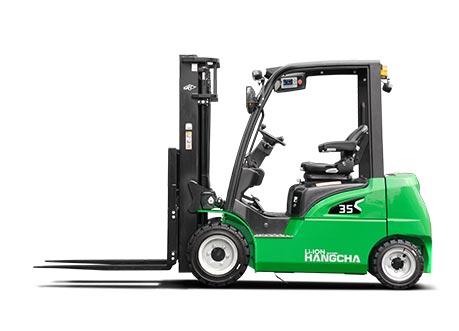

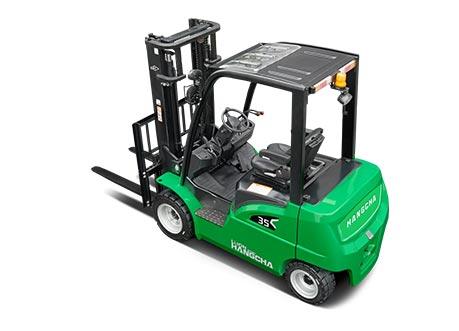

XC Series Electric Lithium-ion Pneumatic Tire Forklift

• The rear axle connects to the newly designed chassis via a floating suspension system. The floating suspension system, combined with the MOSFET controller automatically decelerating while turning, improves stability and operator comfort.
• The MOSFET integrated control system ensures smooth and accurate driving and lifting control. It also provides excellent speed regulation, regenerative braking, reverse braking, and anti-sliding on ramps. The MOSFET integrated control system adds to the safety and reliability of the XC series forklifts.
• The high-power AC traction motor bolts to the chassis via a bridge-type structure for increased stability.
• The controller, connectors, battery plug, and emergency switch are all parts from industry known suppliers to ensure reliability, performance, and ease of service.

• The XC series' internal components are protected from dust and water with a fully-sealed maintenance hatch, controllers, motors, and electrical components.
• The maintenance hatch can be opened at a large angle to allow for easy access.

Thanks to lithium-ion technology, this forklift features opportunity charging. This means that the forklift can work through several shifts, charging during breaks, without needing to stop for hours to recharge. Combined with regenerative braking during deceleration, the powertrain is designed with efficiency in mind. The forklift also comes standard with a high-power pump motor and low-noise gear pump. The high-power AC hydraulic system is extremely efficient. It has protection functions and built-in speed and temperature sensors to increase the hydraulic system's reliability and life span.

• This forklift was designed to meet both the ANSI and ITSDF safety
• standards. This means that the following all come standard on this forklift:
  • An emergency cut-out switch.
  • An overloading protection system is integrated into the electronics and hydraulic systems.
  • The controller automatically reduces the forklift's speed while cornering.
  • The standard configuration provides a soft landing system.
• In addition, an optional lift buffering system can be equipped to protect goods from falling off the lift and damaging the ground.
• As an option, the handbrake can be equipped with an alarm buzzer to prompt the driver to pull up the handbrake before leaving the truck.
• The optional OPS system disables the fork from lowering when the operator leaves the seat.

• Integrated Battery Management System (BMS) continually monitors energy management and ensures reliable operation.
• HANGCHA provides these Lithium Iron Phosphate (LiFePO4) battery packs with up to a 10-year or 20,000-hour warranty.
• See warranty certificate for specific warranty information on the Lithium Iron Phosphate battery packs.
