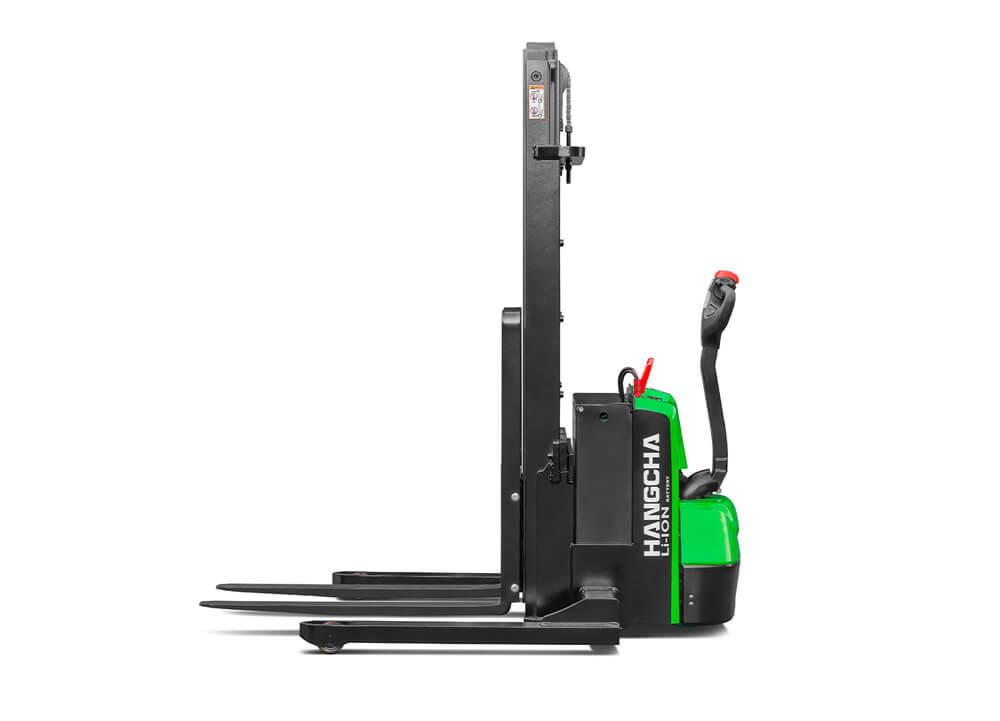

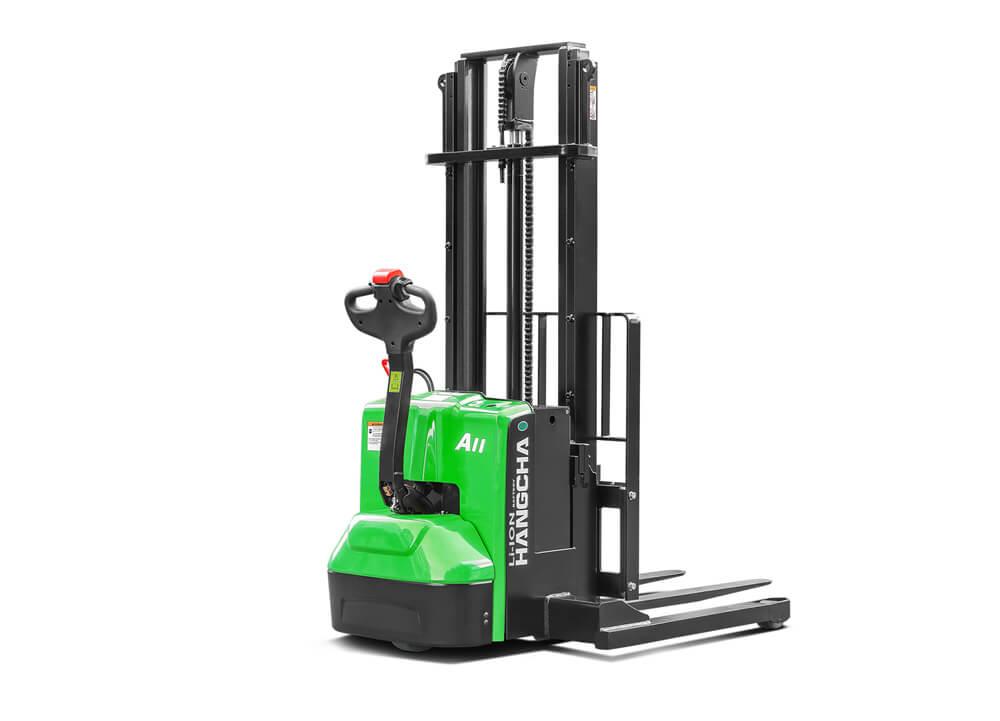

A Series Electric Lithium-ion Walkie Straddle Stacker

2,500lbs lifting capacity

The A Series Lithium-ion Walkie Straddle Stacker is a new logistics handling device developed by Hangcha Group for the high-intensity operating conditions of the North American market. With the AC drive technology, it offers high performance and low maintenance costs. It is also safe, reliable, and can be easily operated. This is an ideal tool for loading, unloading, and handling palletized goods in warehouses, supermarkets, and workshops.

A Series Electric Lithium-ion Walkie Straddle Stacker

Features

  • The A Series Lithium-ion Walkie Straddle Stacker Pallet Truck has a smooth, vivid profile and was designed to be ergonomic. The exterior of this forklift is powder coated in a durable, easy-to-see, green finish that designates it as a lithium-ion powered pallet truck.
  • This pallet truck uses stamped steel plates and injection molded parts. This creates a robust and durable product that is able to successfully take on the wear and tear of a warehouse environment.

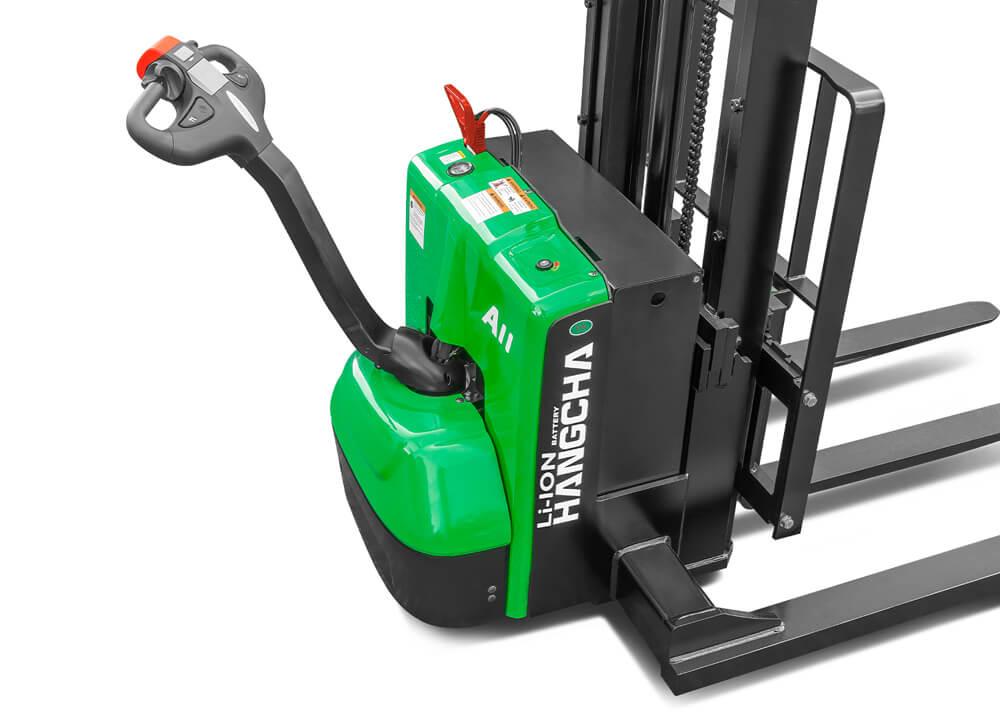

  • Thanks to the tiller's design, all operations can be completed with one hand.
  • When in turtle mode, the truck can be driven slowly, easily, and more accurately.
  • The pallet truck's design is optimized for great visibility and easy operation in narrow aisle applications.

  • The maintenance-free, high-power, brushless AC traction motor has excellent acceleration, performance, good climbing ability, and low heat generation.
  • The CURTIS control system provides accurate, stable, and more efficient control of the AC traction motor.
  • The CANBUS structure makes communication between the different parts of the truck faster and more reliable.
  • The truck uses the regenerative braking system to prevent the pallet truck from sliding down a ramp.
  • The switches, controller, connectors, and battery plug are all parts from industry-known suppliers to ensure reliability, performance, and ease of service.

  • The electrical system uses water-proof plugs and connectors to increase reliability and provide protection to the walkie-straddle stacker's electronics.
  • The non-contact proximity switch features a long service life and is reliable.
  • The low noise and vibration hydraulic power unit enables stable and reliable lifting and lowering.
  • The punched-formed forks provide higher strength and are impact-resistant.
  • The pallet truck is equipped with tip guides to improve operational efficiency.
  • The power plug is fastened to the stacker's body. This prevents the plug from being damaged due to impact when the lithium-ion battery is lifted for installation.

  • Integrated Battery Management System (BMS) continually monitors energy management and ensures reliable operation.
  • HANGCHA provides these Lithium Iron Phosphate (LiFePO4 ) battery packs with up to a 5-year or 10,000-hour warranty.
  • See warranty certificate for specific warranty information on the Lithium Iron Phosphate battery packs.

  • Travel speed is automatically reduced when the fork is lifted above 19.5".
  • The power plug is fixed on the truck body to avoid damage when installing the battery.
  • The pallet jack won't slip on a grade to ensure safe operation.
  • When pressed, the emergency button on the tiller head immediately cuts power to the pallet truck to help keep the operator safe.
  • The lifting limit switch is designed to help protect loads from damage.
  • The pallet jack features a soft landing system to protect goods from being damaged.

  • The brushless AC drive motor is maintenance-free. This significantly reduces the operating costs of the pallet truck.
  • The integrated battery indicator, hour meter, and self-diagnostic instrument are all easy to use.
  • The maintenance hatch opens to allow for easy access to all of the truck's components.

Designed for Narrow Applications

50Ah Internal Battery Charger

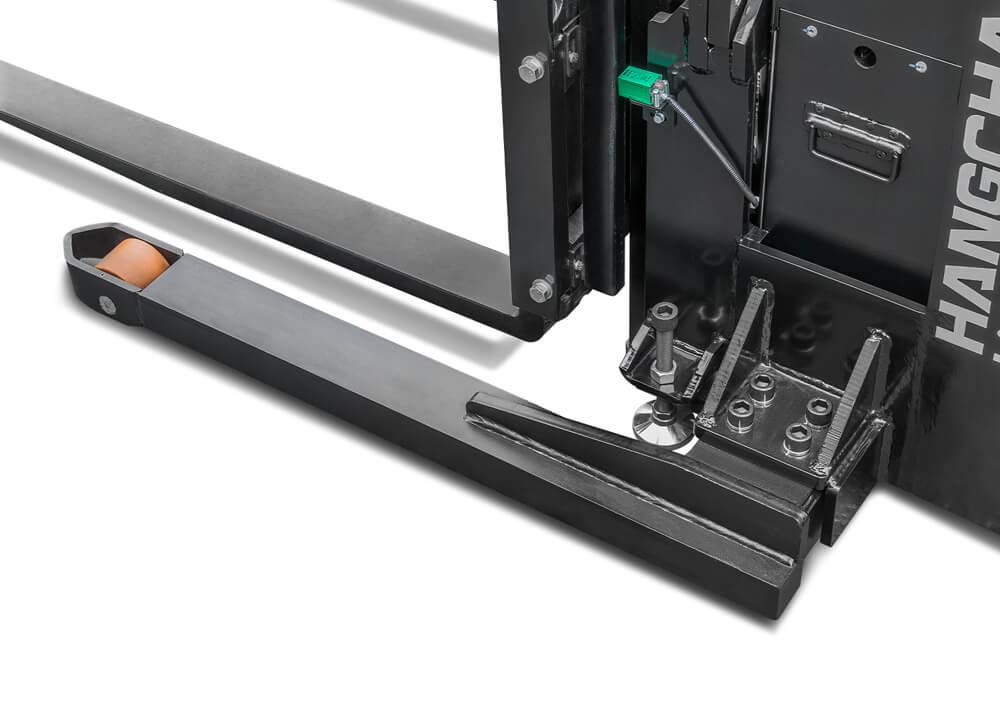

Adjustable Base Legs

Features Proportional Lowering

Standard Features

  • 24 Volt Electrical System
  • CANBUS Communication
  • Curtis AC Controller
  • PU Drive Tire
  • Built-in 50Ah Charger
  • 40" Load Backrest Height
  • Maintenance-Free Lithium-ion Battery
  • SB-175 Red Battery Connector
  • Battery Disconnect Handle
  • Key Switch
  • Multi-Function Meter
  • Electric Horn
  • Upright-Tiller Creep Speed Feature
  • PU Load Wheel
  • Single Load Wheel
  • Emergency Cut-Off Switch

Options

  • Load Backrest
  • PIN Code Access
  • Adjustable Width Base Legs
  • 2 Stage Mast 78-141"
  • Wire Mesh Mast Screen
