A Series Electric Lithium-ion Light Duty Walkie Pallet Jack

4,000lbs lifting capacity

A Series Electric Lithium-ion Light Duty Walkie Pallet Jack

Features

  • The A Series Lithium-ion Mini Walkie Pallet Truck has a smooth, vivid profile and was designed to be ergonomic. The exterior of this forklift is powder coated in a durable, easy-to-see, green finish.
  • This pallet truck uses stamped steel plates and injection molded parts. This creates a robust and durable product that is able to successfully take on the wear and tear of a warehouse environment.

  • The walkie-pallet jack is designed to meet customers' needs thanks to its high power and 4,000lb load capacity.
  • The DC permanent magnet and permanent magnet synchronous traction motor provide excellent performance and low heat generation.
  • The truck’s regenerative braking function also prevents it from sliding down a ramp.

  • The newly developed control joystick is reliable, stylish, and compact. All of the operational inputs can be completed with one hand.
  • The code lock prevents unauthorized personnel from using the equipment.
  • The pallet jack is easy to steer thanks to its low steering resistance.
  • With a high-end cell and multiple safety protection systems, the high-performance lithium battery has a long service life, is maintenance-free, safe, reliable, and can be charged quickly and replaced easily.
  • Thanks to the compact, lightweight, and flexible design, the pallet jack is easy to operate. It is also designed to operate efficiently in narrow aisle environments like a container, thanks to its upright walking function.
  • With only a 3.15” fork clearance, it is designed to fit a variety of pallets.

  • The innovative structural design prevents the harness and electrical parts from moving together with the lifting parts of the pallet jack. This increases the reliability of the pallet truck substantially.
  • When not in use for a certain period of time, the truck will automatically hibernate automatically to protect the battery and prolong the pallet jacks’ operational time.
  • All wires and cables use waterproof plugs and connectors to increase reliability and protect the electronic components in the pallet jack.
  • The low-noise, low-vibration, and high-performance hydraulic power unit enables stable and reliable lifting and lowering of goods.
  • The electronic lifting limit switch is used to avoid overflow from the hydraulic power unit. This saves energy and protects the motor. The switch is highly reliable and has a long service life.
  • The interlock switch is a non-contact proximity switch with high reliability.

  • The pallet jack includes release braking, reverse braking, and emergency braking to ensure safe driving.
  • The pallet jack also features an anti-rollback function to ensure safe operation.
  • The emergency reverse button on the handle can effectively prevent the driver from being injured if the pallet jack moves forward in an emergency situation.
  • The electronic lifting limit and mechanical limit switches prevent an impact caused by lifting goods to the top of the lifting range. This protects both the motor and the goods from being damaged.

  • The lithium battery can be charged quickly and replaced easily.
  • The novelty-designed handle has key switches that can be replaced separately.
  • The power display allows users to see when the battery needs to be charged
  • The maintenance hatch hood opens very easily to expose all components and facilitate easy maintenance of the pallet jack.
  • All of the spindles are equipped with self-lubricated sleeves and oil cups to promote a long service life.

Ergonomic Tiller Design

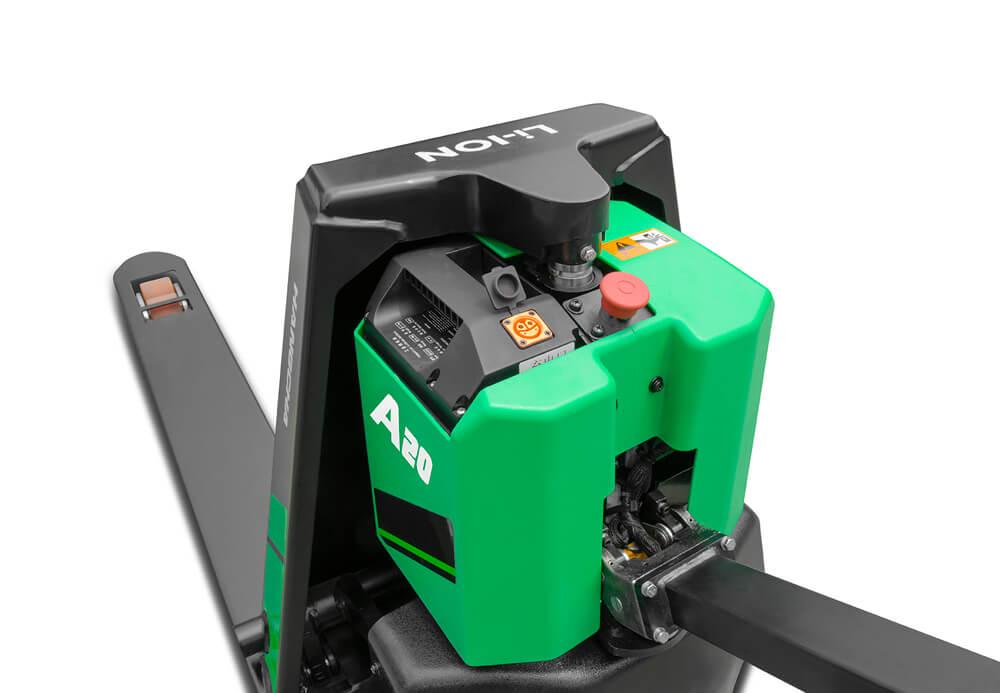

Easily Swappable Battery

External Charger

Rugged, Reliable Design

Standard Features

  • Permanent Magnet Synchronous Traction Motor
  • Single Load Wheels
  • Fork Width: 27"
  • Fork Length: 45"
  • Pin Code Lock
  • Emergency Power Off Switch
  • Multi-Function Meter
  • High-Performance Lithium Battery
  • Non-Contact Interlock Switch
  • Electronic Lifting Limit Switch
  • Upright Walking
  • Horn
  • External Charger

Options

  • Alternative fork lengths and widths
  • Tandem Load Wheel
  • Key Switch
