A Series Electric Lithium-ion High Level Order Picker

3,000lbs lifting capacity

The A Series Electric Lithium-ion Three-Wheel High Level Order Picker is designed to meet order fulfillment needs in narrow aisle environments. This order picker has a comprehensive safety protection system, excellent ergonomics, and an advanced control system. Being reliable, comfortable, safe, and stable, all while providing excellent performance, it is the perfect choice for stock picking in a stereoscopic warehouse of 197”-366” in height.

A Series Electric Lithium-ion High Level Order Picker

Features

  • The maximum full-load travel speed is 7.5mph. This allows for an increase in productivity.
  • The German ZF gearbox and German Schabmueller AC drive and steering motors provide performance, stability, and are reliable.
  • Fully variable lift and lower speeds provide precise control.
  • The AC hydraulic lifting system is highly efficient and maintenance-free.
  • The advanced CURTIS control system provides precise, smooth, and efficient control of the order picker.
  • CANBUS structure allows for the whole vehicle to communicate faster and more reliably.
  • The manual-locking pallet clamp works on a wide range of pallets. It also accommodates pallet stringers ranging from 1″ to 2″ so operators can safely handle any pallet.

  • The A Series Order Picker provides operators with an unobstructed view contributing to an increase in the operator's confidence at height.
  • As a part of the standard configuration, a height sensor is provided.
  • Shifting and lifting or lowering of the mast are buffered to enable more comfort.
  • CURTIS multi-function instruments include functions such as mode selection and wheel position. The instruments also clearly display various information about the order picker.
  • The LORD steering gear with torque feedback is provided to enable higher operating safety and operator comfort.

  • The full-body harness provides protection for the operator.
  • A tilt switch sensor is provided to improve operational safety.
  • The left and right guardrails are equipped with safety switches.
  • The function of proportional speed reduction in corners is equipped as a standard to ensure smooth and safe turning.
  • An emergency lowering feature is included as standard. This operation can be carried out via the control platform or from the rear of the vehicle, respectively.
  • With a safety factor of 10, the mast chain is equipped with a chain safety switch.

  • The vehicle's frame is robust and reliable thanks to its high-strength steel frame structure.
  • All of the order picker's wires and cables are protected. This greatly improves the reliability of the electrical system.
  • Switches, connectors, instruments, and other key parts are all high-quality products with excellent performance and quality.

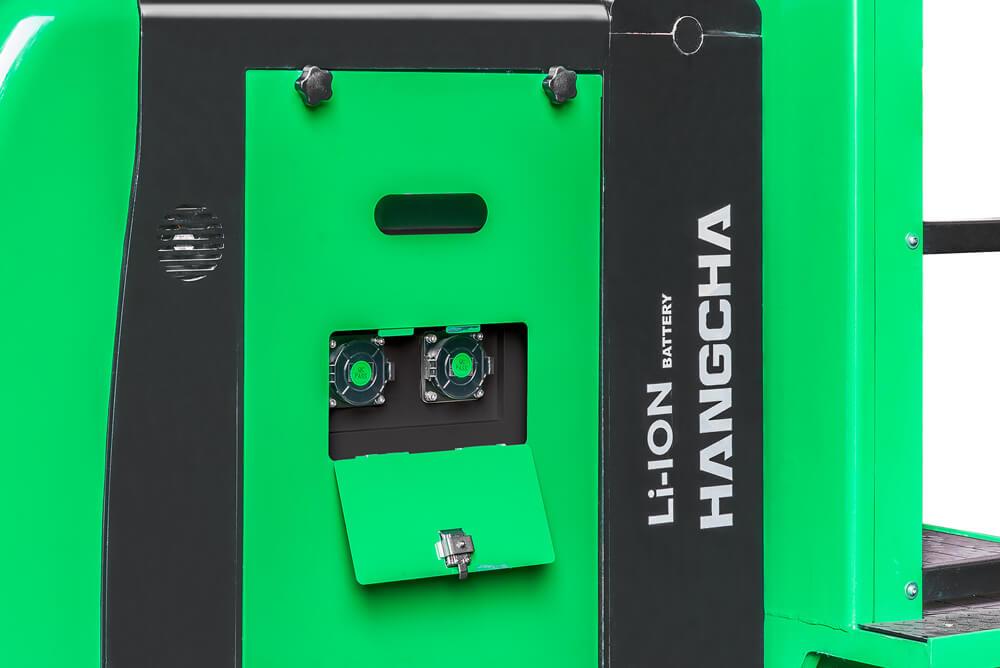

  • Integrated Battery Management System (BMS) continually monitors energy management and ensures reliable operation.
  • HANGCHA provides these Lithium Iron Phosphate (LiFePO4) battery packs with a 10-year or 20,000-hour warranty.
  • See warranty certificate for specific warranty information on the Lithium Iron Phosphate battery packs.

  • The brushless AC motor is maintenance-free. This saves the end-user time and money.
  • The integrated power display, timing, and fault self-diagnosis meter are convenient for maintenance.
  • The rear hood can be easily removed without tools. This is convenient for maintenance of the hydraulic unit, electric control, motor, and other parts.

Great Visibility

Precise Control

Lord Steering Gear

Manual Pallet Clamp

Standard Features

  • 36V Electrical System
  • ZF Drive Unit
  • INTORQ Electromagnetic Brake
  • LORD Steering Gear
  • CURTIS AC Motor Controller
  • CURTIS Multi-Function Instrument Display
  • Chain Safety Switch
  • Guard Rail Switch
  • Reflective Mirror
  • Electronic Power Steering
  • LED Ceiling Light
  • LED Side Light
  • Emergency Cut Off Switch
  • Alarm Light
  • Height Sensor
  • Safety Pedal
  • Left and Right Guard Rail
  • Electrostatic Belt
  • Electromagnetic Brake
  • Full Body Harness & Energy-Absorbing Tether
  • Tilt Switch
  • Pallet Clamp
  • Fully Variable Lift/Lower Controls
  • Manual Emergency Lowering
  • Work Material Storage Compartments
  • Cushioned Mast Stops
  • Cushioned Mast Staging
  • Automatic Return to Center Drive Wheel upon Start-Up
  • Battery Compartment Rollers

Options

  • Side Roller
  • Blue Light
  • Head Lamp
  • Wire Mesh Screen

Product Demonstration

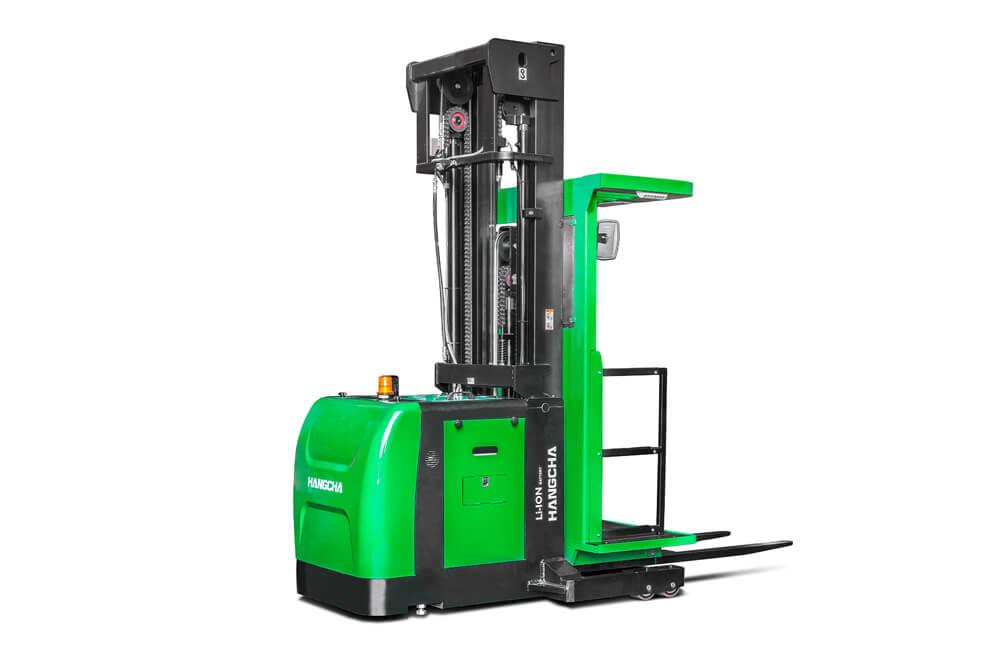

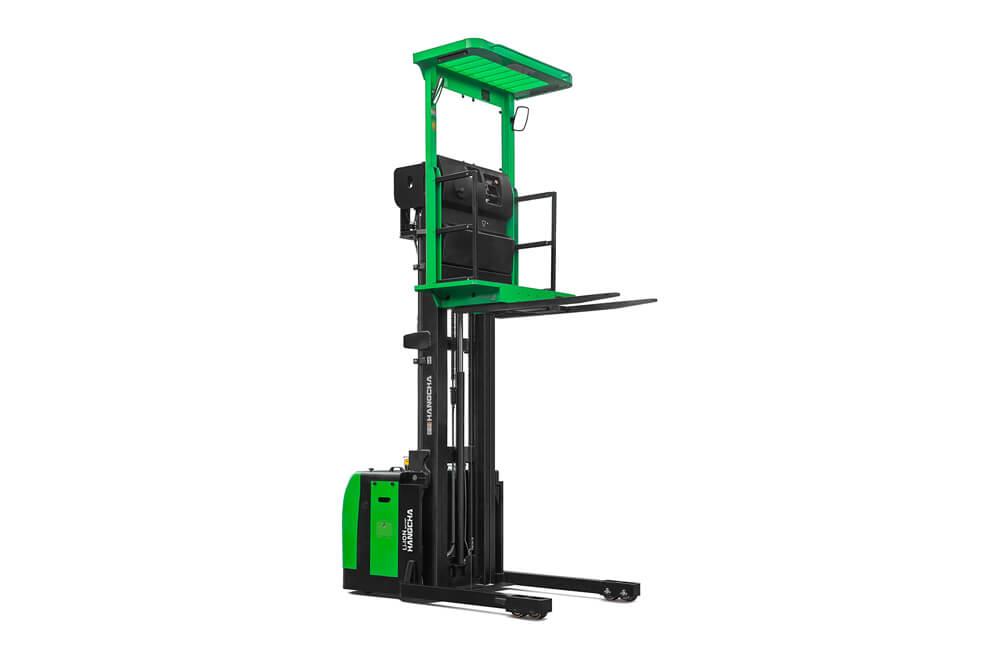

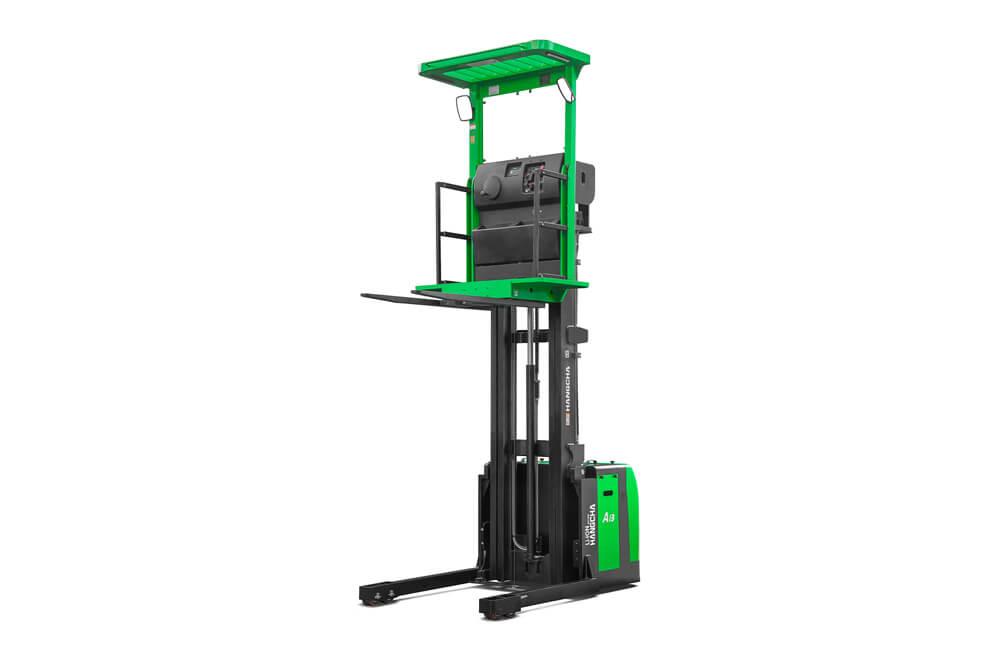

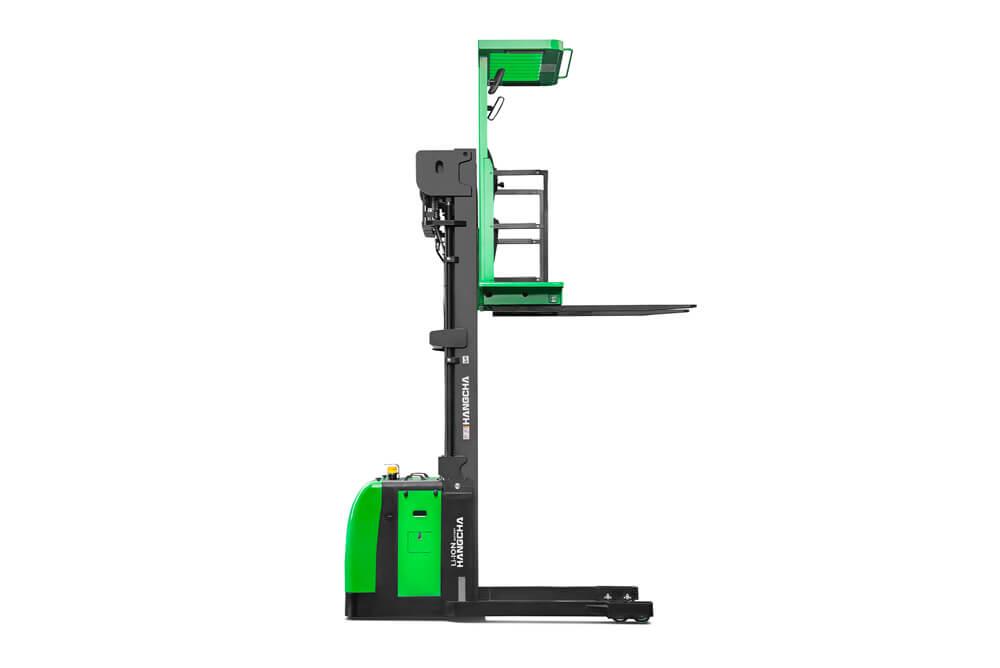

Other Images
